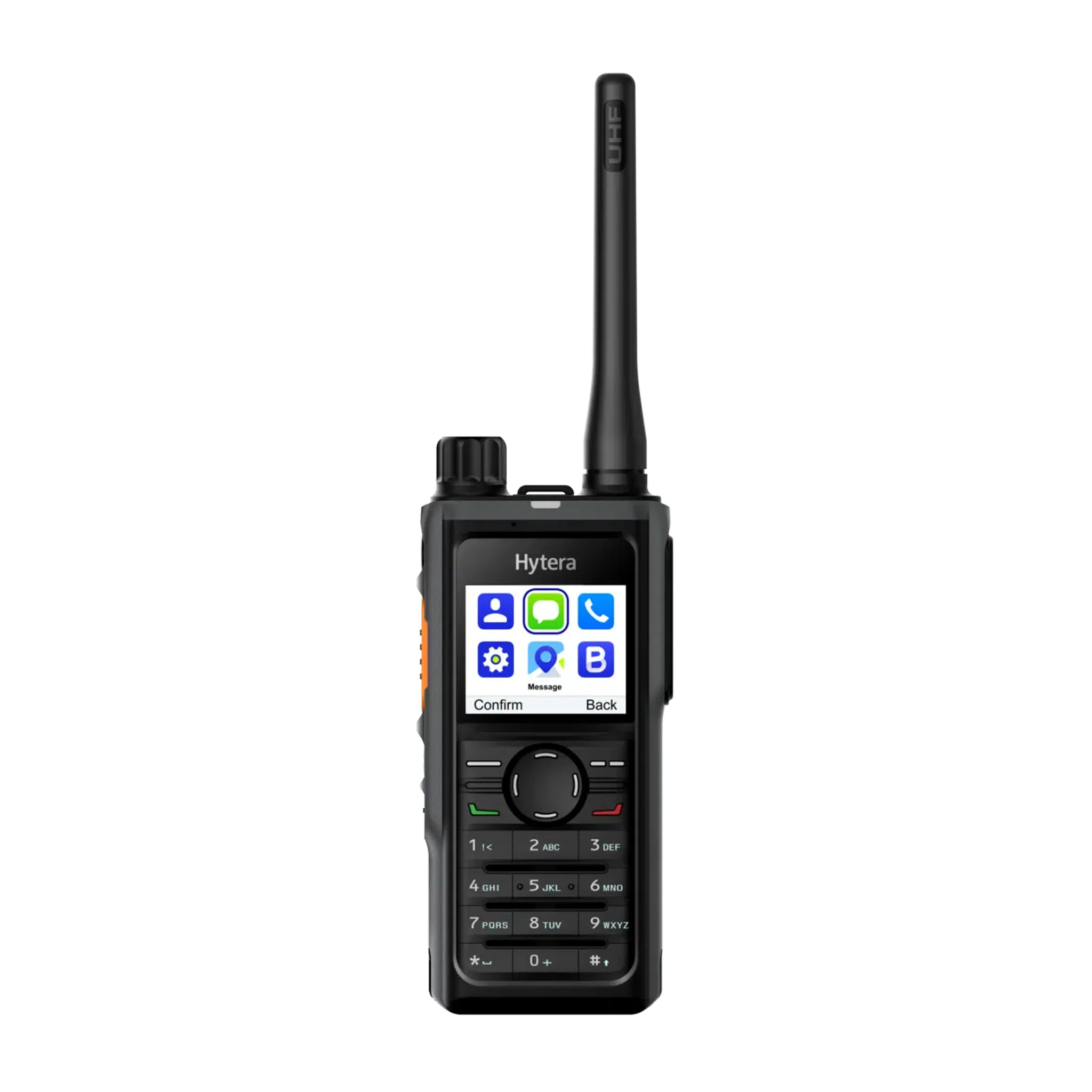

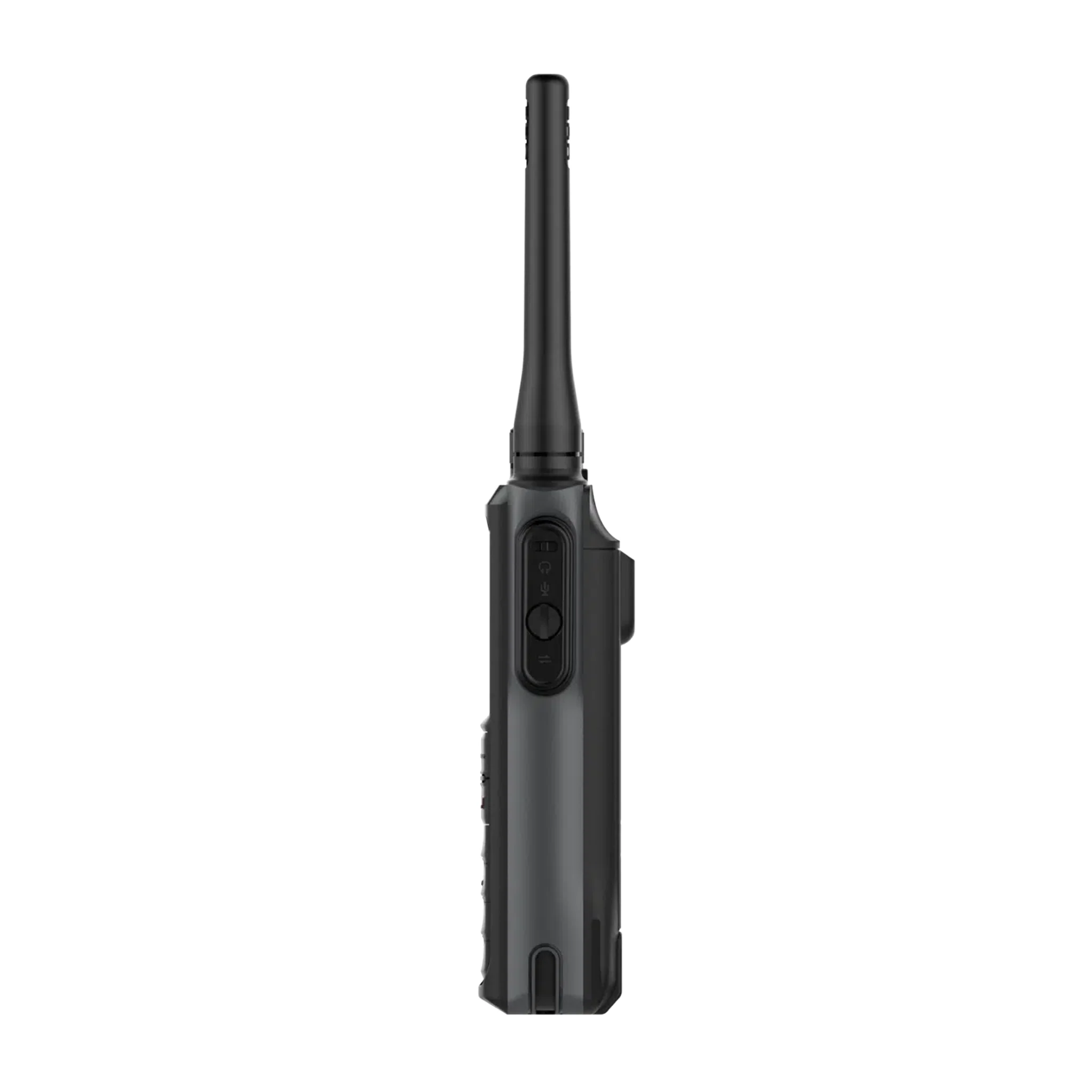

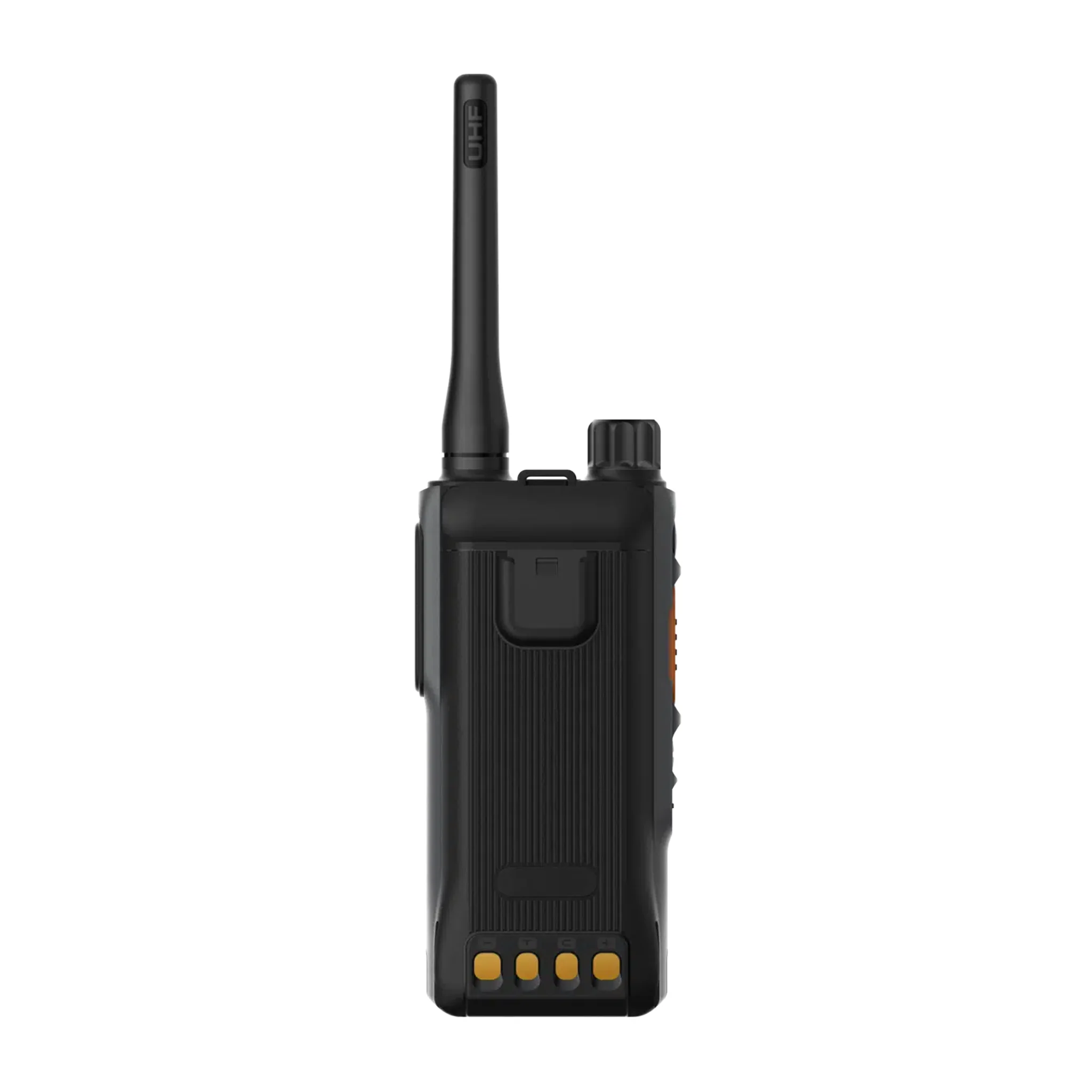

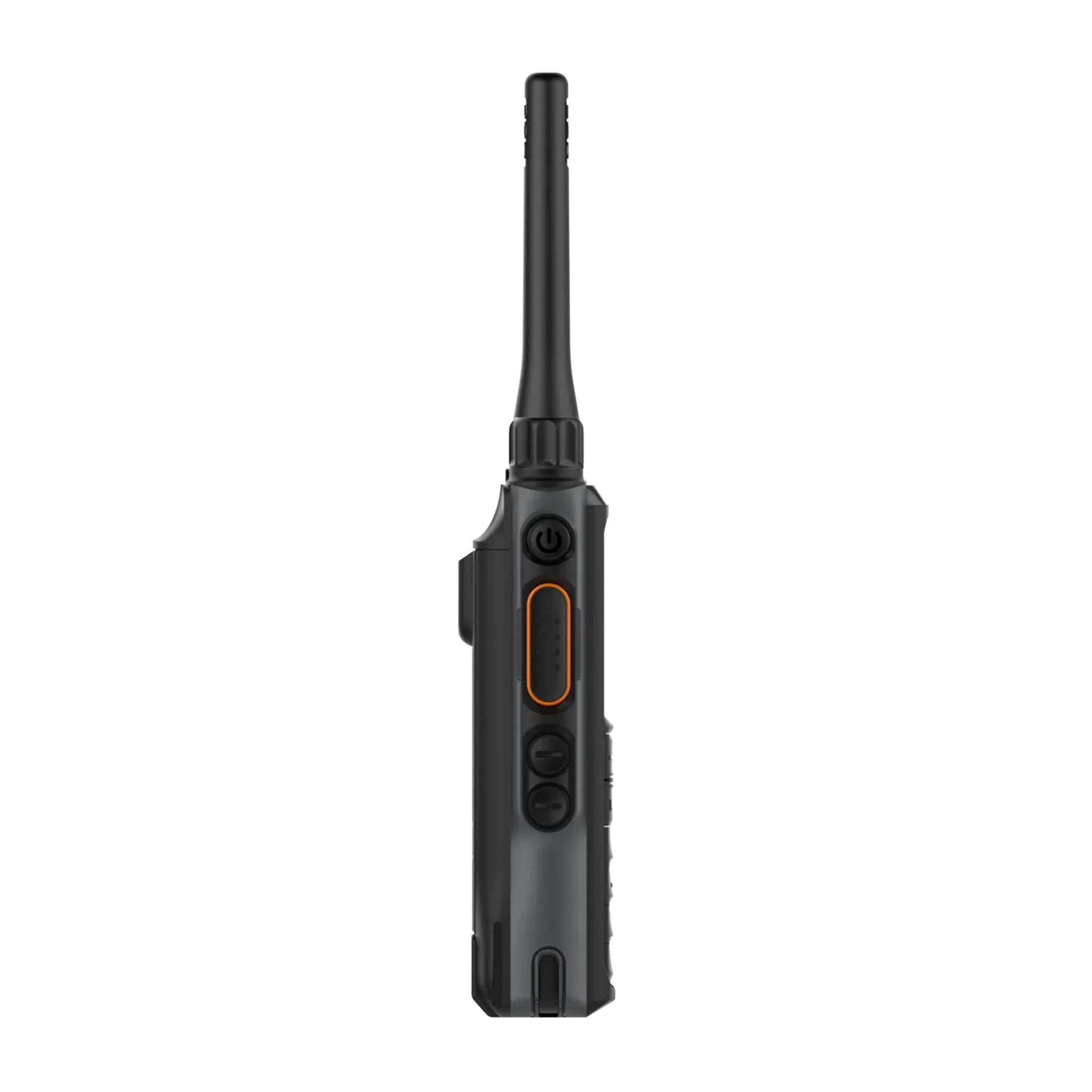

Hytera HP682 Professional DMR Two‑Way Radio
Rugged. Clear. Mission‑Ready.
The Hytera HP682 is a next‑generation professional DMR radio built for organizations that require reliable, high‑clarity communication. With enhanced audio, extended coverage, and a durable design, the HP682 delivers dependable performance in demanding environments.
Key Features
-
Exceptional Audio Quality – AI‑based noise cancellation and a powerful speaker ensure clear communication in loud environments.
-
Rugged & Durable – IP67 water/dust protection and MIL‑STD‑810G compliance for harsh conditions.
-
Extended Battery Life – Up to 20+ hours of operation for long shifts and field use.
-
Enhanced Coverage – Improved receiver sensitivity for stronger, more reliable signal performance.
-
Full‑Color Display – Bright, easy‑to‑read screen for messages, menus, and status information.
-
Safety Features – One‑touch emergency button, lone worker, and man‑down options for added protection.
-
Flexible Connectivity – Bluetooth, GPS (optional), and digital/analog compatibility for smooth migration.
-
Customizable Controls – Programmable buttons and intuitive interface for fast operation.
Ideal For
Public safety, security teams, manufacturing, utilities, hospitality, and any organization requiring rugged, professional‑grade DMR communication.
3‑Year Warranty
General
Frequency Range:
UHF: 400–527 MHz
VHF: 136–174 MHz
Channel Capacity: 1,024 Channels (512 Analog, 512 Digital)
Zone Capacity: 64 Zones with 256 Channels per Zone
Channel Spacing: 12.5 / 20 / 25 kHz
Operating Voltage: 7.7V (Rated)
Battery: 2000mAh Li-ion Polymer
Battery Life (5/5/90):
Up to 20 Hours (GPS Off)
Up to 16 Hours (GPS On)
Weight: 9.88 oz (280 g)
Dimensions (H x W x D): 4.75" x 2.79" x 1.24" (122 x 55 x 31.5 mm)
Frequency Stability: ±0.5 ppm
Antenna Impedance: 50Ω
Display: 1.8" LCD, 160 x 128 pixels, 65,536 colors, 6 lines
Bluetooth: Version 5.0 BLE + EDR
GPS Performance
Cold Start TTFF: <60 Seconds
Hot Start TTFF: <10 Seconds
Horizontal Accuracy: <5 meters
Minimum Satellite Visibility: 5 @ 130 dBm nominal
Receiver
Digital Sensitivity: 0.18 µV (BER 5%)
Analog Sensitivity:
0.16 µV (Typical) @ 12 dB SINAD
0.18 µV @ 12 dB SINAD
Adjacent Channel Selectivity:
TIA-603: 60 dB @ 12.5 kHz, 70 dB @ 20/25 kHz
ETSI: 60 dB @ 12.5 kHz, 70 dB @ 20/25 kHz
Spurious Response Rejection:
TIA-603 & ETSI: 70 dB @ 12.5 / 20 / 25 kHz
Intermodulation:
TIA-603: 70 dB
ETSI: 65 dB @ 12.5 / 20 / 25 kHz
Hum and Noise:
40 dB @ 12.5 kHz
43 dB @ 20 kHz
45 dB @ 25 kHz
Rated Audio Power Output: 0.5W
Audio Distortion: ≤3%
Audio Response: +1 to -3 dB
Conducted Spurious Emission: < -57 dBm
Transmitter
RF Power Output:
VHF: High Power 5W, Low Power 1W
UHF: High Power 4W, Low Power 1W
FM Modulation:
11K0F3E @ 12.5 kHz
14K0F3E @ 20 kHz
16K0F3E @ 25 kHz
4FSK Digital Modulation:
12.5 kHz Data Only: 7K60FXD
12.5 kHz Voice & Data: 7K60FXW
Conducted/Radiated Emission: -36 dBm @ 1 GHz
Modulation Limiting:
±2.5 kHz @ 12.5 kHz
±4.0 kHz @ 20 kHz
±5.0 kHz @ 25 kHz
FM Hum and Noise:
40 dB @ 12.5 kHz
43 dB @ 20 kHz
45 dB @ 25 kHz
Adjacent Channel Power: 60 dB @ 12.5 kHz, 70 dB @ 25 kHz
Audio Response: +1 to -3 dB
Audio Distortion: ≤3%
Digital Vocoder Type: AMBE+2™
Environmental
Operating Temperature: -0°F to +140°F (-20°C to +60°C)
Storage Temperature: -40°F to +185°F (-40°C to +85°C)
ESD: IEC 61000-4-2 (±8 kV Contact, ±15 kV Air)
Dust & Water Protection: IP67 Standard
Humidity, Shock & Vibration: MIL-STD-810 C/D/E/F/G Compliant
Ordering Information
HP682-Um: UHF 400–527 MHz (Antenna 400–470 MHz), 1–4W
HP682-V1: VHF 136–174 MHz (Antenna 153–164 MHz), 1–5W
HP682-G-BT-Um: UHF with GPS and Bluetooth
HP682-G-BT-V1: VHF with GPS and Bluetooth
Hytera DMR radios are covered by a 3-year comprehensive warranty against defects in material and workmanship under normal use and service, and all other Hytera PoC, LTE, Multimode, and HYT analog radios are covered by a 2-year comprehensive warranty.
