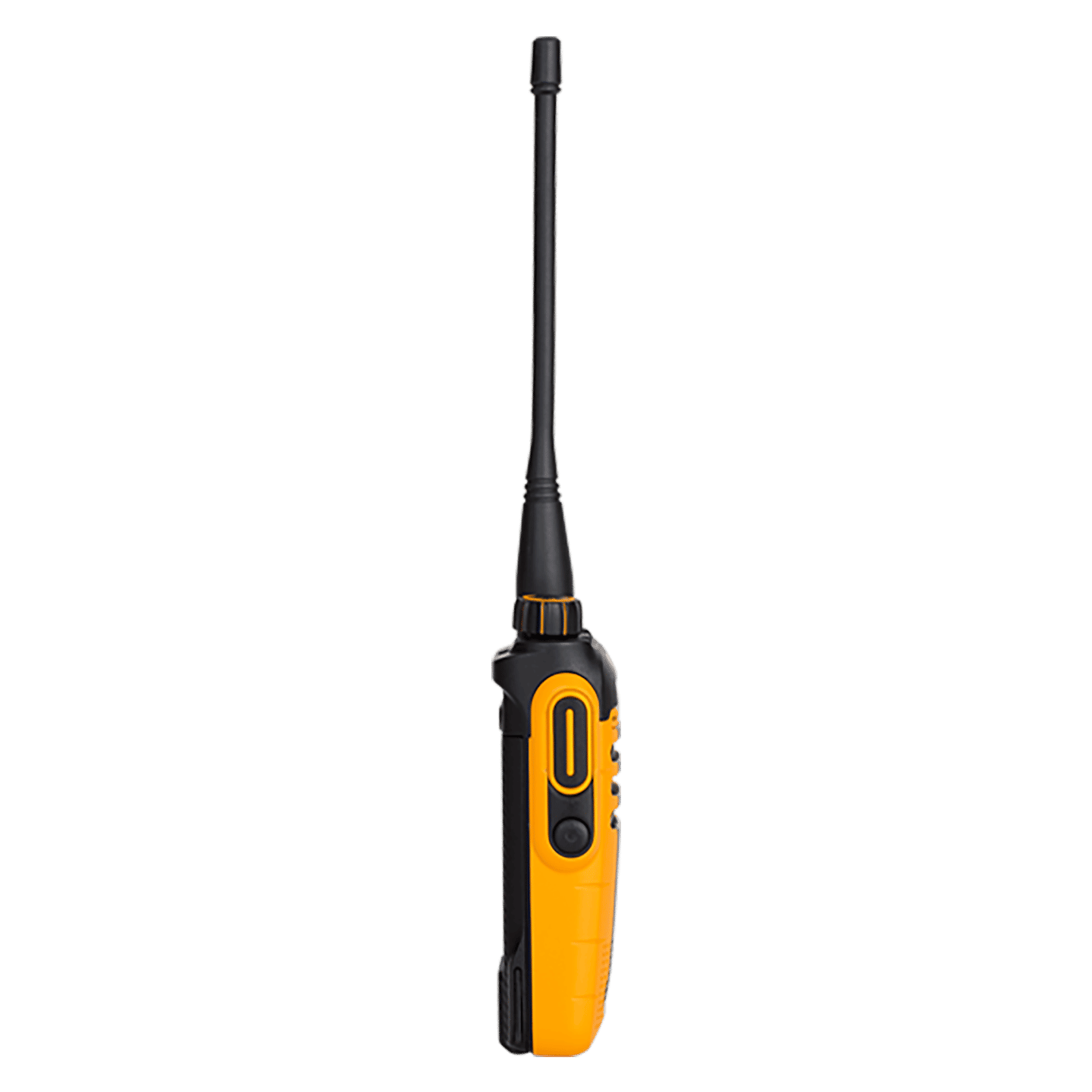

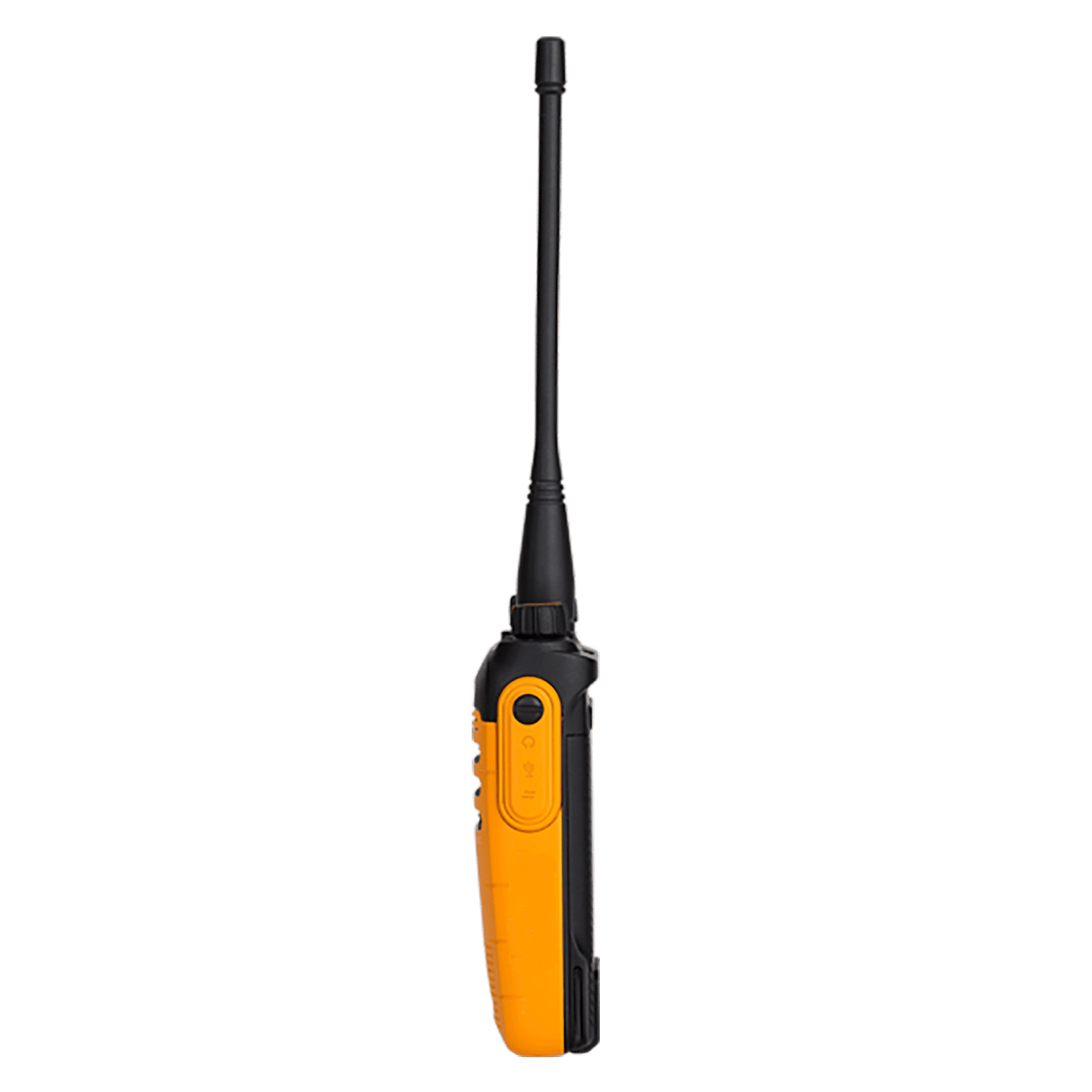

Hytera BD612i DMR Two‑Way Radio
Rugged. Reliable. Built for Everyday Communication.
The Hytera BD612i is a compact, durable DMR two‑way radio designed for clear, dependable communication in demanding environments. With improved digital audio, long battery life, and a tough IP66‑rated housing, the BD612i is ideal for security, hospitality, construction, and industrial teams that need simple, reliable push‑to‑talk performance.
Key Features:
• Digital & Analog Operation – Supports DMR Tier II and analog for smooth migration
• Clear Digital Audio – Enhanced voice clarity in loud or obstructed environments
• Rugged Build – IP66 dust and water protection for harsh conditions
• Long Battery Life – Up to 16 hours of operation on a single charge
• Compact & Lightweight – Easy to carry for all‑day use
• Improved Coverage – Digital technology extends range and signal reliability
• Simple Controls – Easy‑to‑use interface for fast adoption by any team
1 Year Warranty
Hytera BD612i DMR Two‑Way Radio – rugged, efficient, and ready for reliable communication across your entire team.
More Details
General
Frequency Range: UHF 400–470 MHz, VHF 136–174 MHz
Channel Capacity: 48 Channels (24 Analog, 24 Digital)
Zone Capacity: 3 Zones, 16 Channels per Zone
Channel Spacing: 25 / 12.5 kHz
Operating Voltage: 7.2V
Battery:
1500mAh Li-ion (Standard)
2000mAh Li-ion (Optional)
Battery Life (5/5/90):
1500mAh: 16 Hours (Digital), 12 Hours (Analog)
2000mAh: 22 Hours (Digital), 16 Hours (Analog)
Weight: 8.5 oz (240 g)
Dimensions: 4.25" x 2.13" x 1.15" (108 x 54 x 29 mm)
Frequency Stability: ±0.5 ppm
Antenna Impedance: 50Ω
Receiver
Digital Sensitivity: 0.22 μV (BER 5%)
Analog Sensitivity:
0.22 μV (Typical) @ 12 dB SINAD
0.4 μV @ 20 dB SINAD
Adjacent Channel Selectivity:
65 dB @ 12.5 kHz
70 dB @ 25 kHz (TIA-603)
Spurious Response Rejection: 70 dB @ 12.5 / 25 kHz (TIA-603)
Intermodulation: 65 dB @ 12.5 / 25 kHz (TIA-603)
Hum and Noise: 40 dB @ 12.5 kHz, 45 dB @ 25 kHz
Rated Audio Power Output: 0.5 W
Audio Distortion: ≤5%
Audio Response: +1 to -3 dB
Conducted Spurious Emission: < -57 dBm
Transmitter
RF Power Output:
VHF: High 5W, Low 1W
UHF: High 4W, Low 1W
FM Modulation:
11K0F3E @ 12.5 kHz
16K0F3E @ 25 kHz
4FSK Digital Modulation:
12.5 kHz Data Only: 7K60FXD
12.5 kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission: -36 dBm @ 1 GHz
Modulation Limiting:
±2.5 kHz @ 12.5 kHz
±5.0 kHz @ 25 kHz
FM Hum and Noise: 40 dB @ 12.5 kHz, 45 dB @ 25 kHz
Adjacent Channel Power: 60 dB @ 12.5 kHz, 70 dB @ 25 kHz
Audio Response: +1 to -3 dB
Audio Distortion: ≤3%
Digital Vocoder Type: AMBE++
Digital Protocol: ETSI-TS102 361-1, -2, -3
Environmental
Operating Temperature: -22°F to +140°F (-30°C to +60°C)
Storage Temperature: -40°F to +185°F (-40°C to +85°C)
ESD Protection: IEC 61000-4-2 Level 4 (±8 kV Contact, ±15 kV Air)
Dust & Water Protection: IP66 Standard
Humidity: MIL-STD-810 C/D/E/F/G Compliant
Shock and Vibration: MIL-STD-810 C/D/E/F/G Compliant
Ordering Information
BD612i-V1: VHF 136–174 MHz, Antenna 146–174 MHz, 48 Channels
BD612i-U1: UHF 400–470 MHz, Antenna 400–470 MHz, 48 Channels
Hytera DMR radios are covered by a 3-year comprehensive warranty against defects in material and workmanship under normal use and service, and all other Hytera PoC, LTE, Multimode, and HYT analog radios are covered by a 2-year comprehensive warranty.
