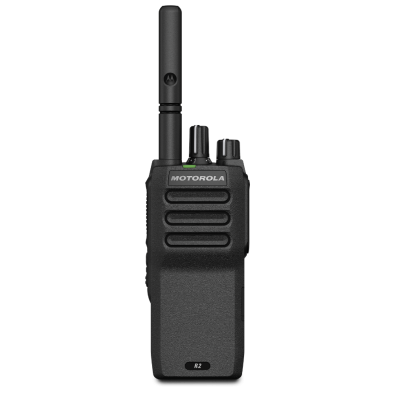

Motorola R2-UD-L2

$694.00 USD
Tax included. Shipping calculated at checkout.
In stock - 20 in stock, ready to ship

Model #: R2-UD-L2

R2 UHF DIGITAL MOTORRBO W/HI-CAP BAT (AAH11YDC9JA2AN)

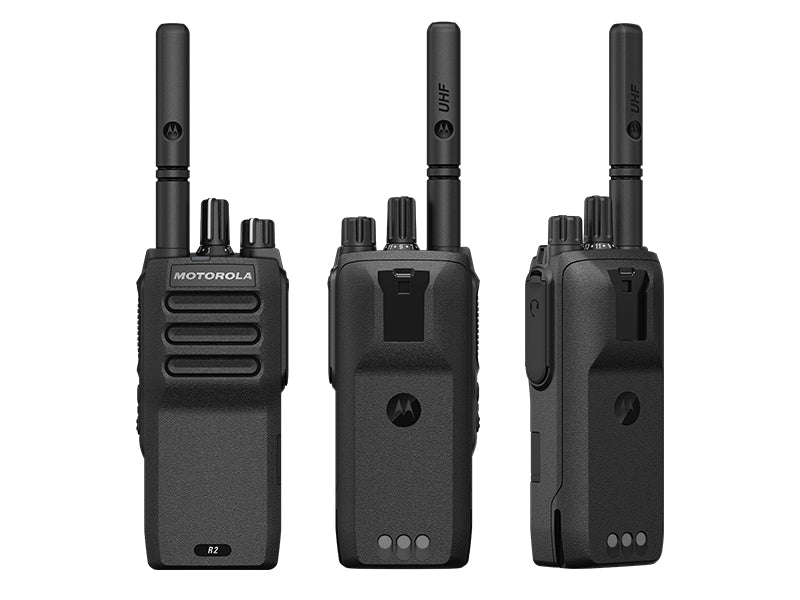

A next-level workhorse, the MOTOTRBO R2 marries durability and ergonomics to ensure confident, easy handling. And with superior range, configurable audio and seamless integration, the R2 is a reliable addition to an uninterrupted workday. This model is a digital radio.

  • Standard Package
  • R2 Radio
  • Li-ion battery
  • Single-unit charger w/power supply
  • Belt clip
  • Antenna
  • Operating Manual
  • Safety Manual
GENERAL SPECIFICATIONS  UHF
Frequency  400-480 MHz
Typical RF Output  4W
High Power  1W
Low Power  12.5 / 25.01 kHz1
Channel spacing  64
Channel capacity  125mm x 55mm x 36.8 mm
Dimension2 (H x W x D) with battery  125mm x 55mm x 31.7mm
PMNN4598 high capacity battery  286g
PMNN4600 slim battery  261g
Weight3 with battery  19.5Hrs / 26.5Hrs
PMNN4598 high capacity battery  17Hrs / 22.5Hrs
PMNN4600 Slim battery  7.5V (nominal)
Battery life4 (analog / digital)  AZ489FT4971
PMNN4598 high capacity battery  109U-89FT4971
PMNN4600 Slim battery
Power supply
FCC description
IC description
1 25 kHz channels not available in USA
2 Dimensions at grip area
3 Excludes antenna  12.5 kHz Data: 7K60F1D and 7K60FXD
4 Typical battery life, 5/5/90 profile at maximum transmitter power. Actual observed runtimes may vary.  12.5 kHz Voice: 7K60F1E and 7K60FXE
Combination: 7K60F1W
TRANSMITTER SPECIFICATIONS ETSI TS 102 361-1, -2, -3
4FSK digital modulation < -36 dBm for < 1 GHz ; < -30 dBm for > 1 GHz
Digital protocol > 60 dB @ 12.5 kHz / > 70 dB @ 25 kHz
Conducted/radiated spurious emissions (TIA603E) ± 0.5 ppm
Adjacent channel power ± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kHz
Frequency stability
Modulation limiting 0.18 μV (typical)
RECEIVER SPECIFICATIONS 0.16 μV (typical)
Analog sensitivity (12dB SINAD) < -57 dBm
Digital sensitivity (5% BER) > 70 dB
Conducted/radiated spurious emissions (TIA603E) > 60 dB @ 12.5 kHz / > 70dB @ 25 kHz
Intermodulation (TIA603E) > 55 dB @ 12.5 kHz / > 70dB @ 25 kHz
Adjacent channel selectivity (TIA603A)-1T > 70 dB
Adjacent channel selectivity (TIA603E)-2T ± 0.5 ppm
Spurious rejection (TIA603E)
Frequency stability AMBE+2
AUDIO SPECIFICATIONS TIA603E
Digital vocoder type 1 W / 3 W
Audio response 3% (typical)
Audio output power (Rated/Max) 101 phon
Audio distortion at rated audio -40 dB @ 12.5 kHz / -45 dB @ 25 kHz
