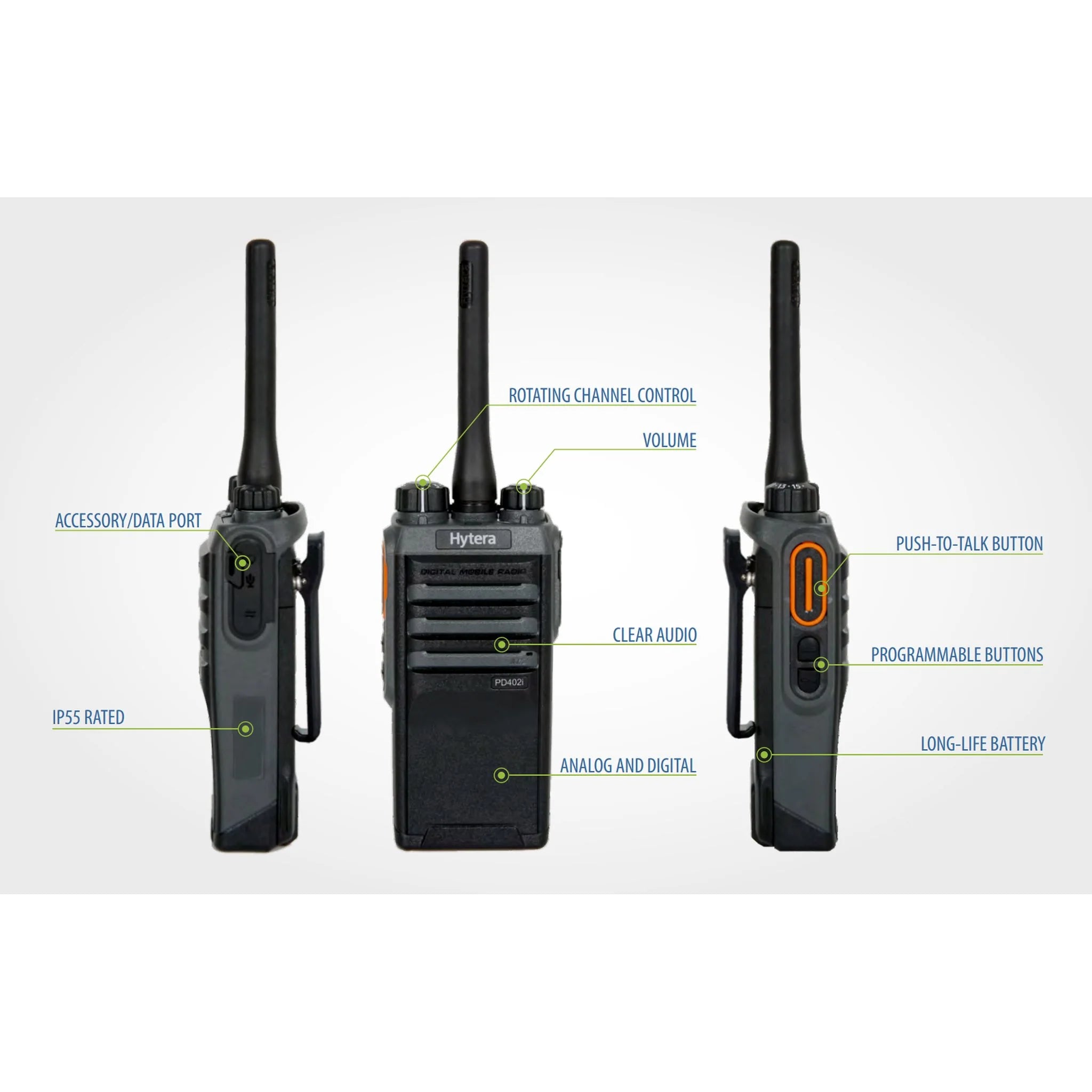

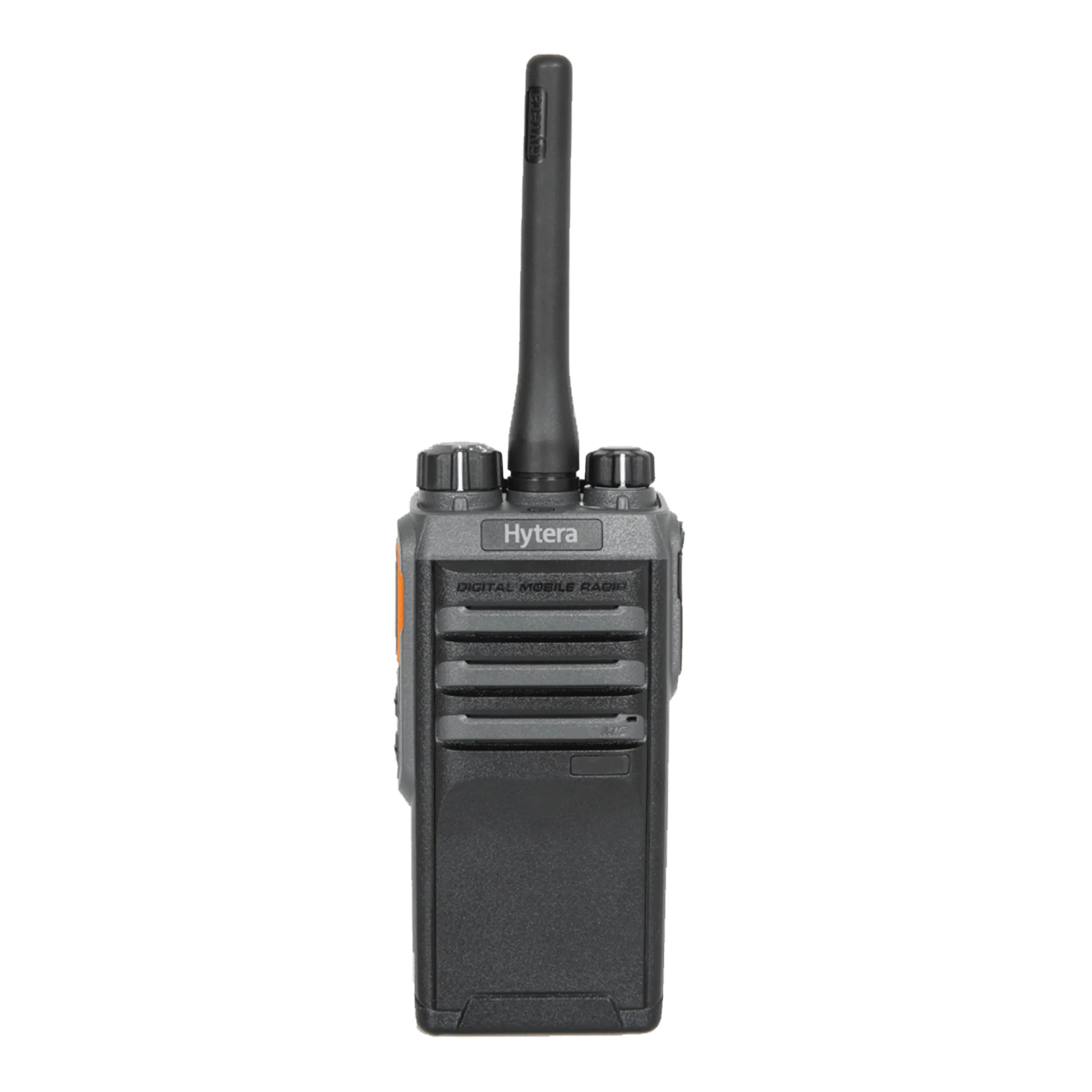

Hytera PD402i Business DMR Portable Two-Way Radio
The Hytera PD402i is a compact, rugged DMR digital portable radio designed for business users who need clear, reliable communication in demanding environments. With digital voice, long battery life, and simple operation, the PD402i is ideal for teams that need professional performance without complexity.
Key Features
- DMR digital and analog operation
- Compact, lightweight business radio design
- Clear audio with improved digital voice quality
- Long battery life for all-day shifts
- Rugged construction for daily professional use
- Programmable buttons for quick access to key functions
Ideal For
- Hospitality and retail
- Property management
- Light industrial and warehousing
- Event coordination and security
The Hytera PD402i offers an excellent balance of durability, audio quality, and ease of use, making it a strong choice for businesses upgrading from analog to digital two-way radio communication.
General
Frequency Range:
UHF: 400–470 MHz
VHF: 136–174 MHz
Channel Capacity: 256 Channels (128 Analog, 128 Digital)
Zone Capacity: 3 Zones with 16 Channels per Zone
Channel Spacing: 25 / 12.5 kHz
Operating Voltage: 7.4V
Battery:
Standard: 1500mAh Li-ion
Optional: 2000mAh Li-ion
Battery Life (5/5/90):
1500mAh: Up to 16 Hours (Digital), 12 Hours (Analog)
2000mAh: Up to 22 Hours (Digital), 16 Hours (Analog)
Weight: 9.5 oz (270 g)
Dimensions (H x W x D): 4.41" x 2.13" x 1.09" (112 x 55 x 28 mm)
Frequency Stability: ±0.5 ppm
Antenna Impedance: 50Ω
Receiver
Digital Sensitivity: 0.22 µV (BER 5%)
Analog Sensitivity:
0.22 µV (Typical) @ 12 dB SINAD
0.4 µV @ 20 dB SINAD
Adjacent Channel Selectivity:
TIA-603: 60 dB @ 12.5 kHz, 70 dB @ 25 kHz
ETSI: 60 dB @ 12.5 kHz, 70 dB @ 25 kHz
Spurious Response Rejection:
TIA-603 & ETSI: 70 dB @ 12.5 / 25 kHz
Intermodulation:
TIA-603: 70 dB
ETSI: 65 dB @ 12.5 / 25 kHz
Hum and Noise:
40 dB @ 12.5 kHz
45 dB @ 25 kHz
Rated Audio Output Power: 0.5 W
Audio Distortion: ≤3%
Audio Response: +1 to -3 dB
Conducted Spurious Emission: < -57 dBm
Transmitter
RF Power Output:
VHF: High Power 5W, Low Power 1W
UHF: High Power 4W, Low Power 1W
FM Modulation: 11K0F3E @ 12.5 kHz
4FSK Digital Modulation:
12.5 kHz Data Only: 7K60FXD
12.5 kHz Voice & Data: 7K60FXW
Conducted/Radiated Emission: -36 dBm @ 1 GHz
Modulation Limiting:
±2.5 kHz @ 12.5 kHz
±5.0 kHz @ 25 kHz
FM Hum and Noise:
40 dB @ 12.5 kHz
45 dB @ 25 kHz
Adjacent Channel Power: 60 dB @ 12.5 kHz, 70 dB @ 25 kHz
Audio Response: +1 to -3 dB
Audio Distortion: ≤3%
Digital Vocoder Type: AMBE++
Digital Protocol: ETSI-TS102 361-1, -2, -3
Environmental
Operating Temperature: -22°F to +140°F (-30°C to +60°C)
Storage Temperature: -40°F to +185°F (-40°C to +85°C)
ESD Protection: IEC 61000-4-2 (±8 kV Contact, ±15 kV Air)
Dust and Water Protection: IP55 Rated
Humidity, Shock & Vibration: MIL-STD-810 C/D/E/F/G Compliant
Ordering Information
PD402i-V1: VHF 136–174 MHz, 1–5W
PD402i-U1: UHF 400–470 MHz, 1–4W
Hytera DMR radios are covered by a 3-year comprehensive warranty against defects in material and workmanship under normal use and service, and all other Hytera PoC, LTE, Multimode, and HYT analog radios are covered by a 2-year comprehensive warranty.
