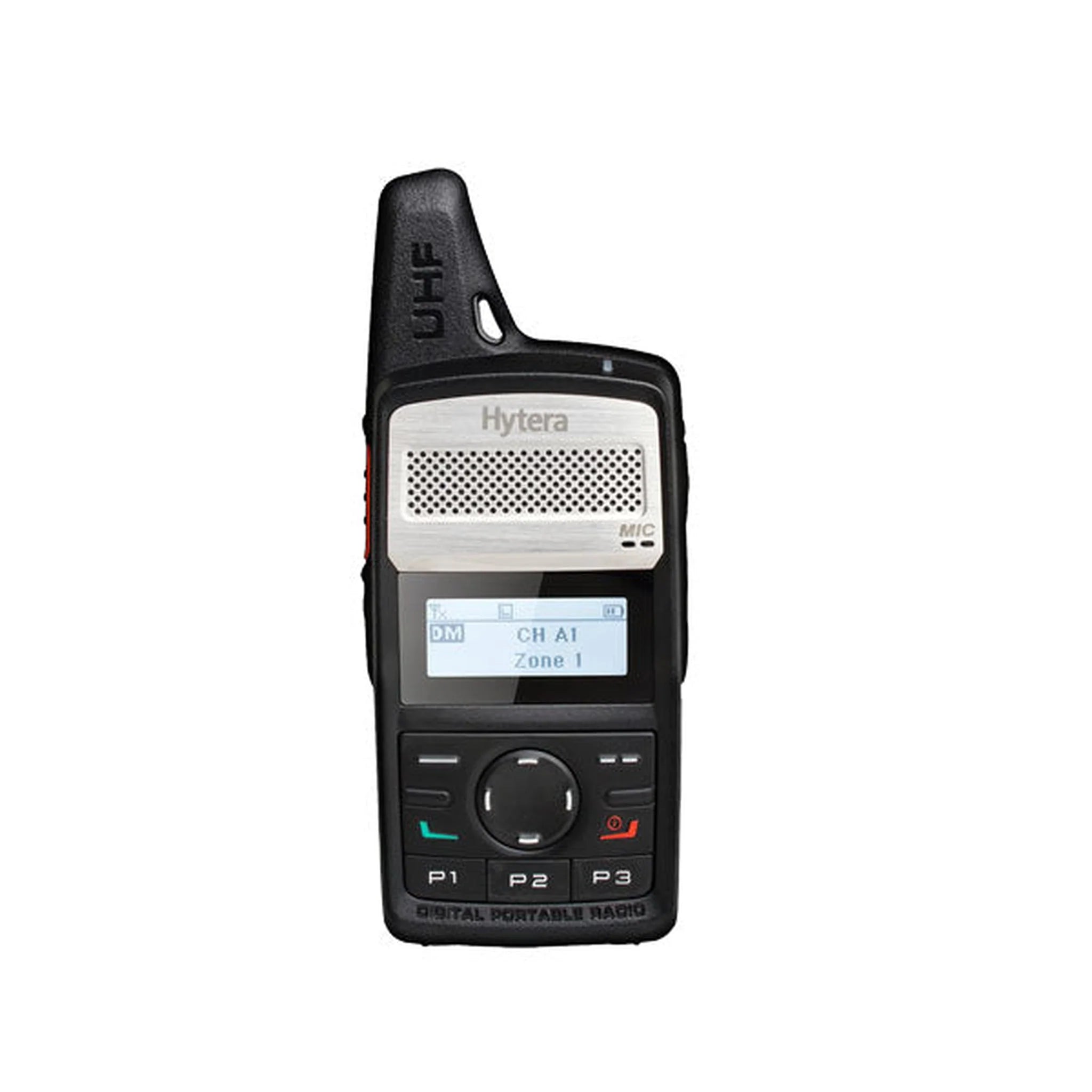

Hytera PD362 DMR Two‑Way Radio
Pocket‑Sized. Lightweight. Digital + Analog Performance.
The Hytera PD362 is a compact, pocket‑sized DMR radio designed for users who need clear, reliable communication in a lightweight and highly portable form factor. Despite its small size, the PD362 delivers excellent digital audio, dual‑mode operation, long battery life, and rugged durability. It’s ideal for retail, hospitality, education, events, and light commercial environments where mobility and simplicity matter most.
Key Features
-
Pocket‑Sized Design – Compact antenna and lightweight frame make it feel like a cellphone.
-
Digital + Analog Dual Mode – Smooth migration from analog to DMR digital.
-
Clear Digital Audio – Built‑in audio equalizer optimizes clarity in any environment.
-
12‑Hour Battery Life – 2000 mAh battery supports long shifts (5‑5‑90 duty cycle).
-
Micro‑USB Charging – Convenient charging with standard USB cables.
-
Rugged Construction – IP54 protection and MIL‑STD‑810G shock/vibration compliance.
-
Text Messaging Support – Digital mode enables simple text communication.
-
256 Channels – Large channel capacity for multi‑team operations.
Technical Specifications
-
Frequency Range: UHF 430–470 MHz depending on model.
-
Power Output: 3 watts.
-
Channel Capacity: 256 channels.
-
Battery: 2000 mAh Li‑Ion, approx. 12 hours digital.
-
Dimensions: 4.84 × 2.17 × 0.91 inches.
-
Weight: 5.64 oz.
-
Durability: IP54, MIL‑STD‑810G.
-
Charging: Micro‑USB.
Ideal For
Retail, hospitality, education, events, property management, and any organization needing a compact, lightweight, and easy‑to‑use digital radio.
2‑Year Warranty
General
Frequency Range:
UHF 400–440 MHz
UHF 430–470 MHz
Channel Capacity: 256 Channels
Zone Capacity: 16 Zones, 16 Channels per Zone
Channel Spacing: 25 / 12.5 kHz
Operating Voltage: 3.7V
Battery: 2000mAh Li-ion
Battery Life (5/5/90): Up to 12 Hours (Digital), 10 Hours (Analog)
Weight: 5.64 oz (160 g)
Dimensions: 4.19" x 2.69" x 0.91" (106 x 55 x 23 mm)
Frequency Stability: ±0.5 ppm
Antenna Impedance: 50Ω
Receiver
Digital Sensitivity: 0.22 µV (BER 5%)
Analog Sensitivity:
0.22 µV (Typical) @ 12 dB SINAD
0.4 µV @ 20 dB SINAD
Adjacent Channel Selectivity:
TIA-603: 60 dB @ 12.5 kHz, 70 dB @ 25 kHz
ETSI: 60 dB @ 12.5 kHz, 70 dB @ 25 kHz
Spurious Response Rejection:
TIA-603 & ETSI: 70 dB @ 12.5 / 25 kHz
Intermodulation:
TIA-603: 70 dB @ 12.5 / 25 kHz
ETSI: 65 dB @ 12.5 / 25 kHz
Hum and Noise: 40 dB @ 12.5 kHz, 43 dB @ 20 kHz, 45 dB @ 25 kHz
Rated Audio Power Output: 0.4 W
Audio Distortion: ≤5%
Audio Response: +1 to -3 dB
Conducted Spurious Emission: < -57 dBm
Transmitter
RF Power Output: 1.5W – 3W (UHF)
FM Modulation:
11K0F3E @ 12.5 kHz
16K0F3E @ 25 kHz
4FSK Digital Modulation:
12.5 kHz Data Only: 7K60FXD
12.5 kHz Voice & Data: 7K60FXW
Conducted/Radiated Emission: -36 dBm @ 1 GHz
Modulation Limiting:
±2.5 kHz @ 12.5 kHz
±5.0 kHz @ 25 kHz
FM Hum and Noise: 40 dB @ 12.5 kHz, 45 dB @ 25 kHz
Adjacent Channel Power: 60 dB @ 12.5 kHz, 70 dB @ 25 kHz
Audio Response: +1 to -3 dB
Audio Distortion: ≤3%
Digital Vocoder Type: AMBE++
Digital Protocol: ETSI-TS102 361-1, -2, -3
Environmental
Operating Temperature: -22°F to +140°F (-30°C to +60°C)
Storage Temperature: -40°F to +185°F (-40°C to +85°C)
ESD Protection: IEC 61000-4-2 Level 4 (±8 kV Contact, ±15 kV Air)
Dust & Water Protection: IP54 Standard
Humidity: MIL-STD-810 C/D/E/F/G Compliant
Shock & Vibration: MIL-STD-810 C/D/E/F/G Compliant
Hytera DMR radios are covered by a 3-year comprehensive warranty against defects in material and workmanship under normal use and service, and all other Hytera PoC, LTE, Multimode, and HYT analog radios are covered by a 2-year comprehensive warranty.
