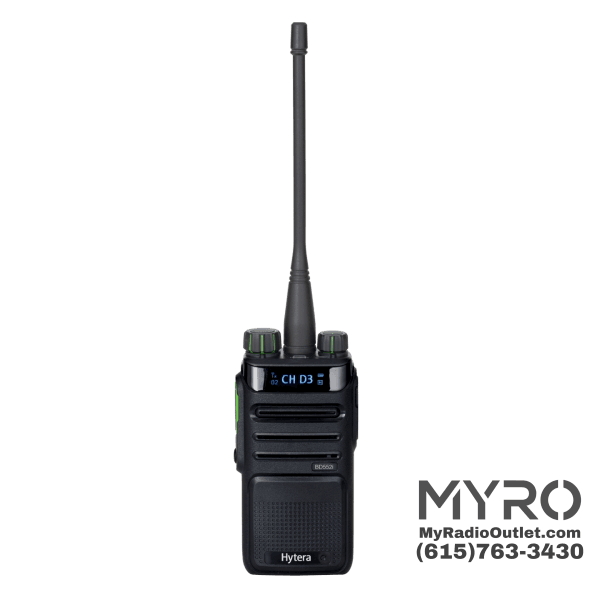

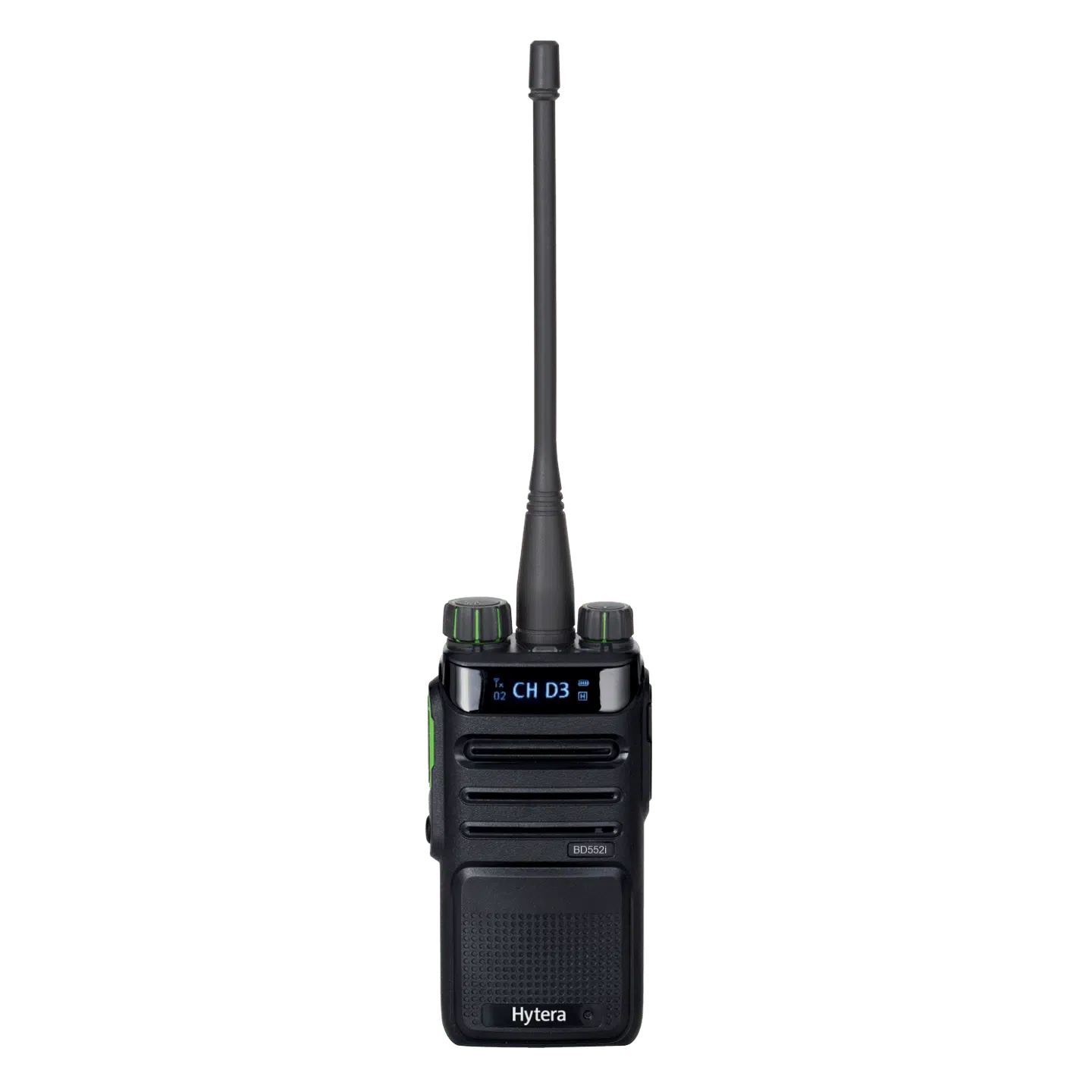

Hytera BD552i Business DMR Portable Two‑Way Radio
Compact. Rugged. Clear Digital Audio.
The Hytera BD552i is a compact, durable, and easy‑to‑use DMR radio designed for professional users who need reliable communication in demanding environments. With support for both digital and analog modes, the BD552i provides a smooth migration path for businesses upgrading from analog systems. It features a bright OLED display, clear digital audio, long battery life, and rugged construction suitable for construction, education, hospitality, warehousing, and security teams.
Key Features
-
Digital and Analog Operation – Supports both modes for flexible fleet compatibility.
-
256 Channels – Large channel capacity for multi‑team operations.
-
OLED Display – High‑contrast single‑line screen for channel, zone, caller ID, and battery status.
-
Clear Digital Audio – Enhanced voice clarity with Hytera digital processing.
-
Optional Bluetooth – Wireless audio support on select models.
-
Repeater Mode Operation – Extends communication range when used with repeaters.
-
Rugged and Durable – MIL‑STD‑810G tested; IP54 dust and water resistance.
-
Long Battery Life – Up to 16 hours of operation on a single charge.
Technical Specifications
-
Frequency Options: UHF or VHF models available.
-
Power Output: 4W (UHF) or 5W (VHF) depending on model.
-
Channel Capacity: 256 channels (128 analog and 128 digital).
-
Zones: 3 zones; 16 channels per zone.
-
Display: 0.91‑inch OLED single‑line display.
-
Battery Life: Up to 16 hours (digital).
-
Durability: IP54 rating; MIL‑STD‑810C/D/E/F/G compliant.
-
Dimensions: Approx. 4.25 × 2.12 × 1.14 inches.
-
Weight: Approx. 0.8 lbs with battery.
Ideal For
Construction, education, hospitality, warehousing, security, retail, and any organization needing a rugged, reliable, and easy‑to‑use digital and analog radio.
3‑Year Warranty
General
Frequency Range: UHF 400–470 MHz, VHF 146–174 MHz
Channel Capacity: 256 Channels (128 Analog, 128 Digital)
Zone Capacity: 16 Zones, 16 Channels per Zone
Channel Spacing: 25 / 12.5 kHz
Operating Voltage: 3.7V
Battery Options:
1500mAh Li-ion: Up to 12 hours (Analog), 16 hours (Digital)
2000mAh Li-ion: Up to 16 hours (Analog), 22 hours (Digital)
Frequency Stability: ±0.5 ppm
Antenna Impedance: 50Ω
Dimensions (H x W x D): 4.25" x 2.12" x 1.14" (108 x 54 x 29 mm)
Weight: 8 oz (with antenna and battery)
Display: 0.91" OLED single-line display
Transmitter
RF Power Output:
VHF: High 5W, Low 1W
UHF: High 4W, Low 1W
FM Modulation:
11K0F3E @ 12.5 kHz
16K0F3E @ 25 kHz
4FSK Digital Modulation:
12.5 kHz (Data Only): 7K60FXD
12.5 kHz (Voice & Data): 7K60FXW
Conducted/Radiated Emission: -36 dBm @ 1 GHz
Modulation Limiting:
±2.5 kHz @ 12.5 kHz
±5.0 kHz @ 25 kHz
FM Hum & Noise: 40 dB @ 12.5 kHz, 45 dB @ 25 kHz
Adjacent Channel Selectivity: 60 dB @ 12.5 kHz, 70 dB @ 25 kHz
Audio Response: +1 to -3 dB
Audio Distortion: ≤3%
Digital Vocoder Type: AMBE++
Digital Protocol: ETSI-TS102 361-1, -2, -3
Receiver
Digital Sensitivity: 0.22 μV (BER 5%)
Analog Sensitivity:
0.22 μV (Typical) @ 12 dB SINAD
0.4 μV @ 20 dB SINAD
Adjacent Channel Selectivity (TIA-603): 60 dB @ 12.5 kHz, 70 dB @ 25 kHz
Intermodulation (TIA-603): 65 dB @ 12.5 / 25 kHz
Spurious Response Rejection (TIA-603): 70 dB @ 12.5 / 25 kHz
Hum & Noise: 40 dB @ 12.5 kHz, 45 dB @ 25 kHz
Rated Audio Power Output: 0.5 W
Audio Distortion: ≤3%
Audio Response: +1 to -3 dB
Conducted Spurious Emission: < -57 dBm
Environmental
Operating Temperature: -22°F to +140°F (-30°C to +60°C)
Storage Temperature: -40°F to +185°F (-40°C to +85°C)
ESD Protection: IEC 61000-4-2 Level 4 (±8 kV Contact, ±15 kV Air)
Dust & Water Protection: IP54 Standard
Humidity: MIL-STD-810 C/D/E/F/G Compliant
Shock & Vibration: MIL-STD-810 C/D/E/F/G Compliant
Hytera DMR radios are covered by a 3-year comprehensive warranty against defects in material and workmanship under normal use and service, and all other Hytera PoC, LTE, Multimode, and HYT analog radios are covered by a 2-year comprehensive warranty.
